A construction surveyor doesn’t disappear after site plans get approved. That approval is when the real fieldwork begins. Construction surveying helps translate approved plans into precise locations on the ground. From the first day of staking through the final inspection, a construction surveyor works alongside the contractor at every stage. Developers who understand this role build faster and with fewer costly corrections.

How the Surveyor Sets Up Horizontal and Vertical Control

Before any crew starts moving dirt, the construction surveyor sets up control points. These are the reference points that everything else gets measured from during the entire project.

Horizontal control sets exact positions in the field. It tells the crew where every element sits relative to the property lines and the approved site plan. Vertical control sets elevation benchmarks. It tells the crew how high or low every element must be across the site.

Both systems connect to fixed reference points already on or near the property. The surveyor uses the approved design data to link design coordinates to those real-world points. That gives field crews a reliable starting place for every measurement they take.

Without this setup, every crew on site works from different starting points. Errors add up fast. Corrections get expensive.

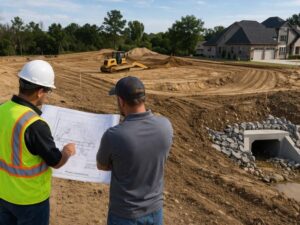

What the Surveyor Does During Active Grading

Grading is one of the most important phases for a construction surveyor to be on site. The land gets reshaped during grading. If the grade is wrong, drainage goes wrong too. In most jurisdictions, finished grades must match the approved civil plans before inspections will pass.

During active grading, the surveyor checks cut and fill elevations against the design. Cut is how much soil gets removed. Fill is how much gets added. Both have target elevations from the approved plans. The surveyor checks those elevations at regular intervals so the grading crew stays on track.

Mistakes caught during grading are cheap to fix. The equipment is already there. The same crew can correct the problem in hours. Mistakes found after grading is done and forms are set take much longer and cost far more.

How Control Gets Maintained Through Structural Phases

Once grading is done, the project moves into structural phases. This includes slabs, foundations, walls and columns. The construction surveyor stays active through all of them.

For slab and foundation work, the surveyor sets offset stakes. These give the crew the exact position of each corner, edge, and centerline. Offset stakes sit slightly away from the actual work area. That way they don’t get disturbed when crews are forming and pouring. The crew measures from the offset to set forms in the right place.

Column and wall locations follow the same process. The surveyor marks centerlines and faces so structural elements land exactly where the drawings require. One misplaced column affects the entire floor plan above it. One wall set a few inches off can create conflicts with windows, doors, and mechanical systems later.

The surveyor also checks elevations before each slab pour. A finished floor at the wrong elevation affects every floor above it. It can also cause issues with drainage slopes and equipment clearances.

Monitoring Elevation During Utility Installation

Underground utilities go in during construction. Sewer lines, water mains, storm drains and conduit runs all have specific depth and slope requirements. A construction surveyor checks that each installation meets those requirements before the trench gets backfilled.

This step cannot be skipped. Once backfill goes in, there is no way to verify slope or depth without digging everything up again. A sewer line at the wrong slope will back up or fail to drain. A storm drain at the wrong elevation can send water to the wrong location entirely.

The surveyor reads the as-installed elevation of each pipe and confirms it matches the approved utility plans. Any problem gets flagged before the trench closes. That is a much shorter conversation than the one that happens after landscaping is in and the system fails.

What the Final As-Built Survey Confirms at Project Closeout

When construction is complete, the construction surveyor prepares a final as-built survey. This document records the actual positions and elevations of every major element on the site. That includes structures, utilities, driveways, drainage features and boundary relationships.

The as-built survey serves several purposes at closeout. Most jurisdictions require it before issuing a certificate of occupancy. Lenders may require it to confirm improvements match what was financed. Future engineers and owners use it as the baseline record for any future changes.

The as-built also shows what got built versus what the plans required. If anything shifted during construction, the as-built captures it. That matters for warranty claims, future permits, and any dispute about what was built and where.

Developers who work with a construction surveyor through every phase get this document as a natural result of the process. Developers who skip survey involvement during construction often have to reconstruct measurements after the fact. That takes longer and is less accurate.

Frequently Asked Questions

How Does a Construction Surveyor Support a Project After Site Plans Are Approved?

Once plans are approved, a construction surveyor establishes control points, stakes the layout, verifies elevations, checks utility locations, and prepares the final as-built survey needed for project completion and occupancy.

How Frequently Does a Construction Surveyor Visit the Job Site?

The number of visits varies depending on the size and complexity of the project. Surveyors are commonly involved during grading, foundation work, utility installation, and final verification, with larger projects requiring more frequent checks.

What Is the Difference Between Construction Staking and an As-Built Survey?

Construction staking provides the reference points needed to guide the placement of buildings and utilities during construction. An as-built survey documents the completed work and records the actual locations and elevations of improvements after construction is finished.

What Happens When Survey Errors Are Found During Construction?

The impact depends on the severity of the issue. Minor discrepancies can often be corrected quickly, while major problems involving foundations or elevations may require additional evaluation before work can continue. Regular survey checks help identify problems before they become more costly.

Why Is a Construction Surveyor Needed When Contractors Already Have Plans?

Construction plans provide the design, but a construction surveyor converts that information into precise field measurements. By verifying positions and elevations throughout the project, surveyors help reduce the risk of costly mistakes that may not be discovered until inspections or project closeout.
