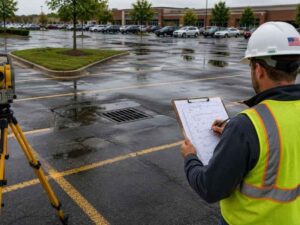

The parking lot looks flat until it rains. Then you find out fast where the low spots are. A topographic survey maps every dip, slope, and grade break across the pavement, so engineers know exactly where water goes wrong before they design a fix. That measured picture is the starting point for any real drainage improvement, not a guess or a walk-through with a flashlight after a storm.

Standing water in a parking lot is not just annoying. It wears down the asphalt faster, creates ice hazards in cold months, and can send runoff into places it was never meant to go. Before anyone can fix that, they need accurate numbers. This is where a topographic survey earns its keep.

Finding the Low Spots Where Water Pools

Water always finds the lowest point. In a parking lot, those low points are rarely obvious to the eye. Pavement can look level and still hold a quarter inch of water after a storm, and that small dip is enough to grow moss, crack the asphalt, or leave a slick patch that catches drivers off guard.

A topographic survey records the exact elevation across the whole surface, not just a few sample spots. Surveyors take readings in a grid pattern, catching the small depressions that hide between rows and near curb lines. Once those elevations are mapped, engineers can see the full shape of the lot and pinpoint exactly where ponding starts. This step focuses only on the existing surface. It does not touch new grading plans or landscaping work, since those come later and depend on this data first.

Checking How Steep the Pavement Really Is

Pavement needs a slight slope to move water toward the right spot. Too flat, and water sits. Too steep, and it rushes toward one corner and overwhelms a single drain. Getting that slope right starts with knowing what already exists on the ground.

Surveyors measure spot elevations across parking rows and along the drive aisles, then calculate the grade between them. This shows both the cross slope, which runs side to side across a row, and the longitudinal slope, which runs the length of a lane. Engineers use these numbers to check whether the pavement is actually pushing water where it should go, or whether the grade has shifted over time due to settling, resurfacing, or old repairs. Without this step, any drainage fix would be based on a guess instead of real measurements.

Pinpointing Catch Basins and Drainage Structures

Every catch basin, inlet, and trench drain in a parking lot has a specific job. It sits at a certain elevation and pulls water from a certain direction. When one of these structures sits too high, too low, or slightly out of place, the whole drainage path can fail even if everything else looks fine.

A topographic survey locates each drainage structure by its horizontal position and records the rim elevation too. That combination tells engineers whether a catch basin is actually low enough to catch the water flowing toward it, or whether it is sitting a bit proud of the surrounding grade and blocking flow. This part of the survey stays focused on the visible structures within the parking lot itself. It does not extend into the wider utility network buried underground, since that is a separate scope of work.

Comparing Curbs and Gutters Along the Runoff Path

Curbs and gutters guide water the same way a riverbank guides a stream. When they are set at the wrong height, or when a section has settled lower than the rest, water breaks out of its intended path and pools somewhere it shouldn’t.

Surveyors record the top of curb, the gutter line, pavement edges, and any grade breaks along the route water is supposed to follow. Small changes matter here. A curb that has dropped just an inch over the years can be enough to redirect runoff toward a building entrance instead of a drain. By mapping these elevations in sequence, the survey shows exactly where the intended flow path breaks down and where it still works as designed.

Building the Base Data for a Drainage Redesign

Once all the elevations, contours, pavement features, and drainage structures are recorded, that information becomes the foundation for any redesign work. Engineers use this existing-condition data to test different fixes, whether that means adding a new inlet, adjusting the grade, or rerouting a section of pavement.

The survey itself does not decide how to fix the drainage. That call belongs to the engineer, who studies the measured data and applies drainage design standards to it. What the topographic survey provides is a reliable, accurate starting point. Without it, any proposed fix is really just an educated guess dressed up as a plan.

Frequently Asked Questions

What topographic survey data is usually needed for a parking lot drainage project?

Most projects need pavement spot elevations across the full lot, along with grade breaks, curb and gutter heights, and the location of drainage inlets and structures. Surveyors also note any visible features that affect how water moves across the surface, like raised medians or pavement seams. This combination gives engineers a full picture of the existing conditions. Without these details, a drainage plan has little solid ground to stand on.

Can a topographic survey show why water is pooling in a parking lot?

Yes, in most cases the measured elevations reveal depressions, flat spots, or breaks in the slope that explain where water collects. The survey can also show if a runoff path has been interrupted by settling pavement or a misplaced curb. Figuring out the exact engineering cause and the right fix usually takes further drainage analysis on top of the survey data. Still, the survey is often the piece that points engineers toward the problem area first.

Should a parking lot be surveyed before drainage improvements are designed?

Yes, accurate existing-condition elevations give the design team something solid to work from instead of rough field notes or assumptions. A survey done first means fewer surprises once construction starts, since the plan is based on real measurements. It also helps avoid costly redesigns if a proposed fix turns out to conflict with the actual grade. Starting with a topographic survey keeps the whole project grounded in facts from day one.
